ADOLC::Sparse::SparseJacInfos Struct Reference

Cached sparse Jacobian recovery data stored on a tape. More...

#include <sparseinfos.h>

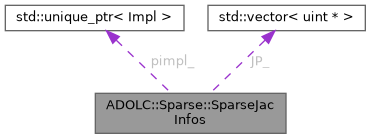

Collaboration diagram for ADOLC::Sparse::SparseJacInfos:

Public Member Functions
	~SparseJacInfos ()
	SparseJacInfos ()
	SparseJacInfos (const SparseJacInfos &)=delete
	SparseJacInfos (SparseJacInfos &&other) noexcept
SparseJacInfos &	operator= (const SparseJacInfos &)=delete
SparseJacInfos &	operator= (SparseJacInfos &&other) noexcept
void	setJP (std::vector< uint * > &&JPIn)
	Replace the cached sparsity pattern.
std::vector< uint * > &	getJP ()
	Access the cached CRS Jacobian pattern.
void	initColoring (int dimOut, int dimIn)
	Initialize ColPack coloring state for the given matrix shape.
void	generateSeedJac (const std::string &coloringVariant)
	Generate and cache a Jacobian seed matrix.
void	recoverRowFormatUserMem (SparseMatrix &sparseJac) const
	Recover row-compressed sparse Jacobian entries into SparseMatrix.
void	recoverRowFormat (SparseMatrix &sparseJac) const
	Resize and recover a row-compressed sparse Jacobian.
void	recoverColFormatUserMem (SparseMatrix &sparseJac) const
	Recover column-compressed sparse Jacobian entries into SparseMatrix.
void	recoverColFormat (SparseMatrix &sparseJac) const
	Resize and recover a column-compressed sparse Jacobian.
void	recoverANFUserMem (SparseANF &sparseANF, int indep, int numSwitches) const
	Split the recovered extended Jacobian into caller-sized ANF blocks.
void	recoverANF (SparseANF &sparseANF, int indep, int numSwitches) const
	Split the recovered extended Jacobian into abs-normal blocks.

Public Attributes
std::unique_ptr< Impl >	pimpl_
double *	y_ {nullptr}
double **	Seed_ {nullptr}
double **	B_ {nullptr}
std::vector< uint * >	JP_
int	depen_ {0}
int	nnzIn_ {0}
int	seedClms_ {0}
int	seedRows_ {0}

Detailed Description

Cached sparse Jacobian recovery data stored on a tape.

This helper owns the ColPack graph/coloring objects and all temporary buffers required to recover sparse Jacobians from compressed directional evaluations.

Constructor & Destructor Documentation

~SparseJacInfos()

ADOLC::Sparse::SparseJacInfos::~SparseJacInfos

(

)

SparseJacInfos() [1/3]

ADOLC::Sparse::SparseJacInfos::SparseJacInfos

(

)

SparseJacInfos() [2/3]

ADOLC::Sparse::SparseJacInfos::SparseJacInfos ( const SparseJacInfos &  )

delete

SparseJacInfos() [3/3]

ADOLC::Sparse::SparseJacInfos::SparseJacInfos ( SparseJacInfos &&  other )

noexcept

Member Function Documentation

generateSeedJac()

void ADOLC::Sparse::SparseJacInfos::generateSeedJac

(

const std::string &

coloringVariant

)

Generate and cache a Jacobian seed matrix.

getJP()

std::vector< uint * > & ADOLC::Sparse::SparseJacInfos::getJP ( )

inline

Access the cached CRS Jacobian pattern.

initColoring()

void ADOLC::Sparse::SparseJacInfos::initColoring	(	int	dimOut,
		int	dimIn
	)

Initialize ColPack coloring state for the given matrix shape.

operator=() [1/2]

SparseJacInfos & ADOLC::Sparse::SparseJacInfos::operator= ( const SparseJacInfos &  )

delete

operator=() [2/2]

SparseJacInfos & ADOLC::Sparse::SparseJacInfos::operator= ( SparseJacInfos &&  other )

noexcept

recoverANF()

void ADOLC::Sparse::SparseJacInfos::recoverANF	(	SparseANF &	sparseANF,
		int	indep,
		int	numSwitches
	)		const

Split the recovered extended Jacobian into abs-normal blocks.

The recovered matrix is interpreted as [Y J; Z L] with rows [y ; z] and columns [x ; |z|]. The four sparse blocks are resized automatically and filled with block-local coordinates.

recoverANFUserMem()

void ADOLC::Sparse::SparseJacInfos::recoverANFUserMem	(	SparseANF &	sparseANF,
		int	indep,
		int	numSwitches
	)		const

Split the recovered extended Jacobian into caller-sized ANF blocks.

sparseANF.Y, sparseANF.J, sparseANF.Z, and sparseANF.L must already contain exactly the number of entries required by the cached abs-normal sparsity pattern. Recovered entries use block-local coordinates.

recoverColFormat()

void ADOLC::Sparse::SparseJacInfos::recoverColFormat

(

SparseMatrix &

sparseJac

)

const

Resize and recover a column-compressed sparse Jacobian.

recoverColFormatUserMem()

void ADOLC::Sparse::SparseJacInfos::recoverColFormatUserMem

(

SparseMatrix &

sparseJac

)

const

Recover column-compressed sparse Jacobian entries into SparseMatrix.

Note

The structure is adapted from ColPack's JacobianRecovery1D::RecoverD2Cln_CoordinateFormat_usermem to work with an array of row-column-value triplets (aka. CoordinateFormatTripled) rather than separate arrays for rows, columns, and values.

recoverRowFormat()

void ADOLC::Sparse::SparseJacInfos::recoverRowFormat

(

SparseMatrix &

sparseJac

)

const

Resize and recover a row-compressed sparse Jacobian.

recoverRowFormatUserMem()

void ADOLC::Sparse::SparseJacInfos::recoverRowFormatUserMem

(

SparseMatrix &

sparseJac

)

const

Recover row-compressed sparse Jacobian entries into SparseMatrix.

Note

The structure is adapted from ColPack's JacobianRecovery1D::RecoverD2Row_CoordinateFormat_usermem to work with an array of row-column-value triplets (aka. CoordinateFormatTripled) rather than separate arrays for rows, columns, and values.

setJP()

void ADOLC::Sparse::SparseJacInfos::setJP ( std::vector< uint * > &&  JPIn )

inline

Replace the cached sparsity pattern.

Existing CRS rows are deleted before the new storage is adopted.

Parameters

JPIn	New CRS sparsity rows.

Member Data Documentation

B_

double** ADOLC::Sparse::SparseJacInfos::B_ {nullptr}

depen_

int ADOLC::Sparse::SparseJacInfos::depen_ {0}

JP_

std::vector<uint *> ADOLC::Sparse::SparseJacInfos::JP_

nnzIn_

int ADOLC::Sparse::SparseJacInfos::nnzIn_ {0}

pimpl_

std::unique_ptr<Impl> ADOLC::Sparse::SparseJacInfos::pimpl_

Seed_

double** ADOLC::Sparse::SparseJacInfos::Seed_ {nullptr}

seedClms_

int ADOLC::Sparse::SparseJacInfos::seedClms_ {0}

seedRows_

int ADOLC::Sparse::SparseJacInfos::seedRows_ {0}

y_

double* ADOLC::Sparse::SparseJacInfos::y_ {nullptr}

---

The documentation for this struct was generated from the following file:

• sparseinfos.h
