Ipopt::ReferencedObject Class Reference

Storing the reference count of all the smart pointers that currently reference it. More...

#include <IpReferenced.hpp>

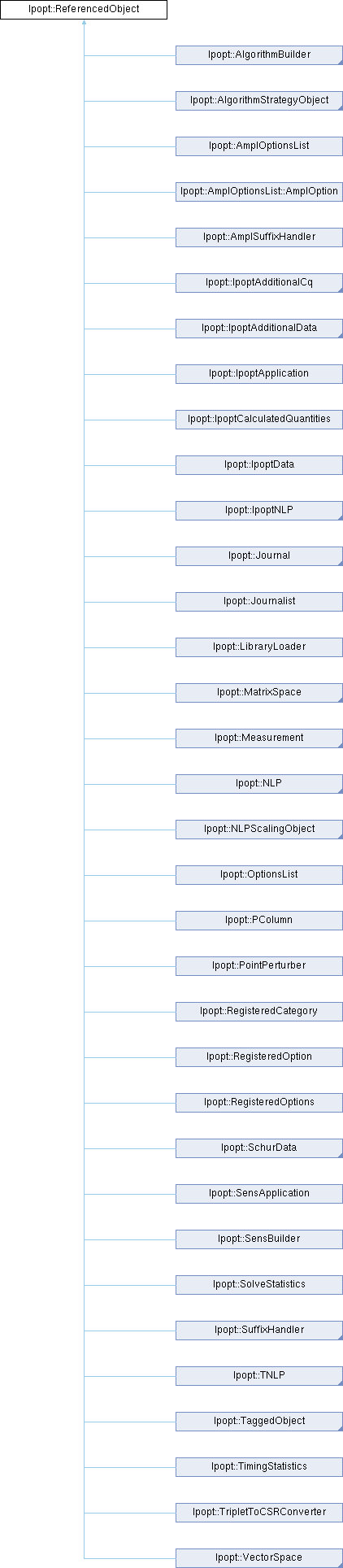

+ Inheritance diagram for Ipopt::ReferencedObject:

Public Member Functions

 ReferencedObject ()
virtual ~ReferencedObject ()
Index ReferenceCount () const
void AddRef (const Referencer *referencer) const
void ReleaseRef (const Referencer *referencer) const

Private Attributes

Index reference_count_

Detailed Description

Storing the reference count of all the smart pointers that currently reference it.

This is part of the implementation of an intrusive smart pointer design. See the documentation for the SmartPtr class for more details.

A SmartPtr behaves much like a raw pointer, but manages the lifetime of an object, deleting the object automatically. This class implements a reference-counting, intrusive smart pointer design, where all objects pointed to must inherit off of ReferencedObject, which stores the reference count. Although this is intrusive (native types and externally authored classes require wrappers to be referenced by smart pointers), it is a safer design. A more detailed discussion of these issues follows after the usage information.

Usage Example: Note: to use the SmartPtr, all objects to which you point MUST inherit off of ReferencedObject.

* In MyClass.hpp...
* #include "IpReferenced.hpp"

* namespace Ipopt {
*  class MyClass : public ReferencedObject // must derive from ReferencedObject
*    {
*      ...
*    }
* } // namespace Ipopt
* In my_usage.cpp...
* #include "IpSmartPtr.hpp"
* #include "MyClass.hpp"
* void func(AnyObject& obj)
*  {
*    SmartPtr<MyClass> ptr_to_myclass = new MyClass(...);
*    // ptr_to_myclass now points to a new MyClass,
*    // and the reference count is 1
*    ...
*    obj.SetMyClass(ptr_to_myclass);
*    // Here, let's assume that AnyObject uses a
*    // SmartPtr<MyClass> internally here.
*    // Now, both ptr_to_myclass and the internal
*    // SmartPtr in obj point to the same MyClass object
*    // and its reference count is 2.
*    ...
*    // No need to delete ptr_to_myclass, this
*    // will be done automatically when the
*    // reference count drops to zero.
*  }

Other Notes: The SmartPtr implements both dereference operators -> & *. The SmartPtr does NOT implement a conversion operator to the raw pointer. Use the GetRawPtr() method when this is necessary. Make sure that the raw pointer is NOT deleted. The SmartPtr implements the comparison operators == & != for a variety of types. Use these instead of

*    if (GetRawPtr(smrt_ptr) == ptr) // Don't use this

SmartPtr's, as currently implemented, do NOT handle circular references. For example: consider a higher level object using SmartPtrs to point to A and B, but A and B also point to each other (i.e. A has a SmartPtr to B and B has a SmartPtr to A). In this scenario, when the higher level object is finished with A and B, their reference counts will never drop to zero (since they reference each other) and they will not be deleted. This can be detected by memory leak tools like valgrind. If the circular reference is necessary, the problem can be overcome by a number of techniques:

1) A and B can have a method that "releases" each other, that is they set their internal SmartPtrs to NULL.

*        void AClass::ReleaseCircularReferences()
*          {
*          smart_ptr_to_B = NULL;
*          }

Then, the higher level class can call these methods before it is done using A & B.

2) Raw pointers can be used in A and B to reference each other. Here, an implicit assumption is made that the lifetime is controlled by the higher level object and that A and B will both exist in a controlled manner. Although this seems dangerous, in many situations, this type of referencing is very controlled and this is reasonably safe.

3) This SmartPtr class could be redesigned with the Weak/Strong design concept. Here, the SmartPtr is identified as being Strong (controls lifetime of the object) or Weak (merely referencing the object). The Strong SmartPtr increments (and decrements) the reference count in ReferencedObject but the Weak SmartPtr does not. In the example above, the higher level object would have Strong SmartPtrs to A and B, but A and B would have Weak SmartPtrs to each other. Then, when the higher level object was done with A and B, they would be deleted. The Weak SmartPtrs in A and B would not decrement the reference count and would, of course, not delete the object. This idea is very similar to item (2), where it is implied that the sequence of events is controlled such that A and B will not call anything using their pointers following the higher level delete (i.e. in their destructors!). This is somehow safer, however, because code can be written (however expensive) to perform run-time detection of this situation. For example, the ReferencedObject could store pointers to all Weak SmartPtrs that are referencing it and, in its destructor, tell these pointers that it is dying. They could then set themselves to NULL, or set an internal flag to detect usage past this point.

For every most derived object only one ReferencedObject may exist, that is multiple inheritance requires virtual inheritance, see also the 2nd point in ticket #162.

Comments on Non-Intrusive Design: In a non-intrusive design, the reference count is stored somewhere other than the object being referenced. This means, unless the reference counting pointer is the first referencer, it must get a pointer to the referenced object from another smart pointer (so it has access to the reference count location). In this non-intrusive design, if we are pointing to an object with a smart pointer (or a number of smart pointers), and we then give another smart pointer the address through a RAW pointer, we will have two independent, AND INCORRECT, reference counts. To avoid this pitfall, we use an intrusive reference counting technique where the reference count is stored in the object being referenced.

Definition at line 169 of file IpReferenced.hpp.

Constructor & Destructor Documentation

◆ ReferencedObject()

Ipopt::ReferencedObject::ReferencedObject ( )

Definition at line 172 of file IpReferenced.hpp.

◆ ~ReferencedObject()

virtual Ipopt::ReferencedObject::~ReferencedObject ( )

Definition at line 176 of file IpReferenced.hpp.

Member Function Documentation

◆ ReferenceCount()

Index Ipopt::ReferencedObject::ReferenceCount ( ) const

Definition at line 203 of file IpReferenced.hpp.

◆ AddRef()

void Ipopt::ReferencedObject::AddRef ( const Referencer referencer) const

Definition at line 211 of file IpReferenced.hpp.

◆ ReleaseRef()

void Ipopt::ReferencedObject::ReleaseRef ( const Referencer referencer) const

Definition at line 226 of file IpReferenced.hpp.

Member Data Documentation

◆ reference_count_

Index Ipopt::ReferencedObject::reference_count_

Definition at line 194 of file IpReferenced.hpp.

The documentation for this class was generated from the following file:
