tape_interface.h File Reference

#include <adolc/adolcerror.h>
#include <adolc/adolcexport.h>
#include <adolc/valuetape/valuetape.h>
#include <cassert>
#include <cstddef>
#include <vector>

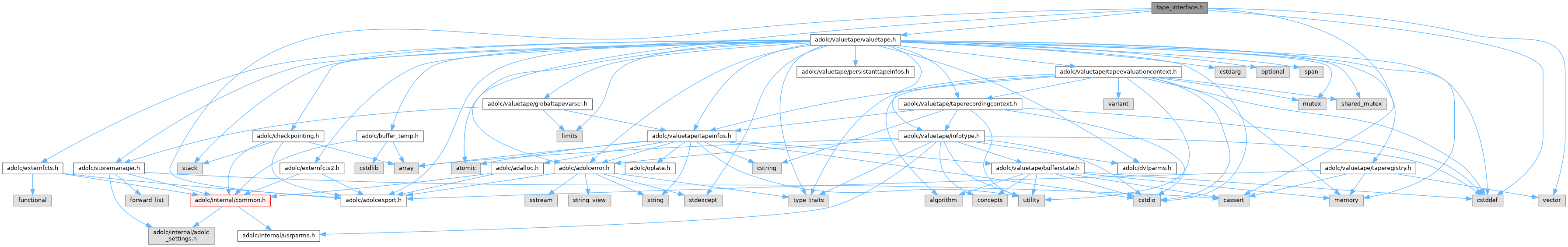

Include dependency graph for tape_interface.h:

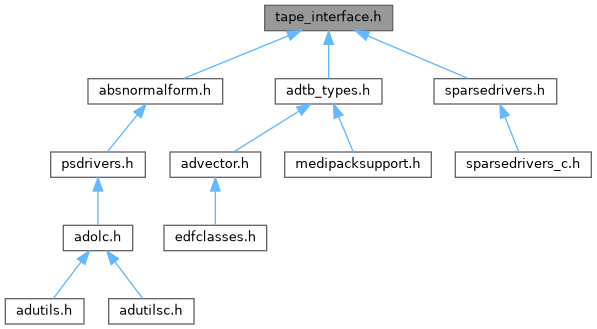

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
ADOLC_API int	trace_on (short tapeId, int keepTaylors=0)
	Initializes taping for the given tapeId.
ADOLC_API int	trace_on (short tapeId, int keepTaylors, size_t obs, size_t lbs, size_t vbs, size_t tbs, int skipFileCleanup)
	Initializes taping with fine-grained buffer configuration.
ADOLC_API void	trace_off (int flag=0)
	Stops the current tracing session and handles the tape.
ADOLC_API void	cachedTraceTags (std::vector< short > &result)
	Writes the tapeIds of the tapes stored in the thread-local tapeBuffer in result
ADOLC_API void	nestedReverseEval (short tapeId, bool flag)
	Marks whether reverse evaluation of this tape is nested inside an outer tape evaluation.
ADOLC_API bool	nestedReverseEval (short tapeId)
	Returns whether reverse evaluation of this tape is treated as nested.
ADOLC_API std::array< size_t, TapeInfos::STAT_SIZE >	tapestats (short tapeId)
	Writes the tapestats of the tape into an array.
ADOLC_API void	printTapeStats (short tapeId)
	Prints the stats of the tape.
ADOLC_API size_t	get_num_param (short tapeId)
	Returns the number of parameters recorded on tape.
ADOLC_API size_t	get_num_switches (short tapeId)
	Returns the number of switching variables recorded on tape.

Function Documentation

cachedTraceTags()

ADOLC_API void cachedTraceTags

(

std::vector< short > &

result

)

Writes the tapeIds of the tapes stored in the thread-local tapeBuffer in result

Parameters

result

vector to store the IDs

Note

the vector is resized in this function to the size of the tapeBuffer

get_num_param()

ADOLC_API size_t get_num_param ( short  tapeId )

inline

Returns the number of parameters recorded on tape.

Parameters

tapeId

ID of the tape to read the number of parameters

Returns

number of parameters

Exceptions

ADOLCError::ErrorType::NO_TAPE_ID

if the specified tape does not exist.

get_num_switches()

ADOLC_API size_t get_num_switches ( short  tapeId )

inline

Returns the number of switching variables recorded on tape.

Parameters

tapeId

ID of the tape to read the number of switching variables

Returns

number of switching variables

Exceptions

ADOLCError::ErrorType::NO_TAPE_ID	if the specified tape does not exist.
ADOLCError::ErrorType::NO_MINMAX	if tape was not recorded without enableMinMaxUsingAbs().

nestedReverseEval() [1/2]

ADOLC_API bool nestedReverseEval ( short  tapeId )

inline

Returns whether reverse evaluation of this tape is treated as nested.

Parameters

tapeId

the ID of the tape to query

Returns

true if reverse sweeps accumulate into an outer tape, false otherwise

Exceptions

ADOLCError::ErrorType::NO_TAPE_ID

if the specified tape does not exist.

nestedReverseEval() [2/2]

ADOLC_API void nestedReverseEval ( short  tapeId, bool  flag  )

inline

Marks whether reverse evaluation of this tape is nested inside an outer tape evaluation.

When enabled, reverse sweeps accumulate adjoints into the outer tape's independent and dependent slots instead of overwriting them.

Parameters

tapeId	the ID of the tape to update
flag	true for nested reverse evaluation, false otherwise

Exceptions

ADOLCError::ErrorType::NO_TAPE_ID

if the specified tape does not exist.

printTapeStats()

ADOLC_API void printTapeStats

(

short

tapeId

)

Prints the stats of the tape.

Parameters

tapeId

the ID of the tape to print the stats

Exceptions

ADOLCError::ErrorType::NO_TAPE_ID

if the specified tape does not exist.

tapestats()

ADOLC_API std::array< size_t, TapeInfos::STAT_SIZE > tapestats ( short  tapeId )

inline

Writes the tapestats of the tape into an array.

Parameters

tapeId

the ID of the tape to read the tapestats

Returns

array of size TapeInfos::STAT_SIZE that stores all tape's metadata

Exceptions

ADOLCError::ErrorType::NO_TAPE_ID

if the specified tape does not exist.

trace_off()

ADOLC_API void trace_off

(

int

flag = 0

)

Stops the current tracing session and handles the tape.

Cleans up the tape, copies remaining live variables, and updates its status. Optionally writes tape files to disk depending on the value of flag.

Parameters

flag	If non-zero, forces the tape to write op/loc/val files.

Exceptions

ADOLCError::ErrorType::TAPING_NOT_ACTUALLY_TAPING

if no active tracing is detected.

Note

assert in debug mode if currentTape is nullptr

trace_on() [1/2]

ADOLC_API int trace_on	(	short	tapeId,
		int	keepTaylors,
		size_t	obs,
		size_t	lbs,
		size_t	vbs,
		size_t	tbs,
		int	skipFileCleanup
	)

Initializes taping with fine-grained buffer configuration.

Prepares a ValueTape with custom buffer sizes for operations, locations, values, and Taylor coefficients. Also allows disabling cleanup of intermediate files.

Parameters

tapeId	ID of the tape to trace.
keepTaylors	Whether to store Taylor coefficients.
obs	Operation buffer size.
lbs	Location buffer size.
vbs	Value buffer size.
tbs	Taylor buffer size.
skipFileCleanup	Whether to skip cleaning up tape files after tracing.

Returns

1 on success, -1 on failure.

Exceptions

ADOLCError::ErrorType::NO_TAPE_ID

if the specified tape does not exist.

trace_on() [2/2]

ADOLC_API int trace_on	(	short	tapeId,
		int	keepTaylors = 0
	)

Initializes taping for the given tapeId.

Prepares a ValueTape for recording operations, storing the current tapeId for later restoration. Initializes the tape’s memory and metadata.

Parameters

tapeId	ID of the tape to activate for tracing.
keepTaylors	Flag indicating whether to keep Taylor coefficients (non-zero to keep).

Returns

1 on success, 0 on failure.

Exceptions

ADOLCError::ErrorType::NO_TAPE_ID

if the specified tape does not exist.
