ADOLC::Sparse::detail::BvpData< BPPD > Struct Template Reference

Internal data structure managing buffers and parameters for bit-vector propagation. More...

#include <sparsedrivers.h>

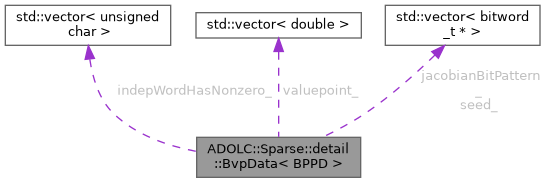

Collaboration diagram for ADOLC::Sparse::detail::BvpData< BPPD >:

Public Member Functions
	BvpData (const BvpData &)=delete
BvpData &	operator= (const BvpData &)=delete
	BvpData (BvpData &&)=delete
BvpData &	operator= (BvpData &&)=delete
	~BvpData ()
	Destructor — frees dynamically allocated memory for bit patterns.
	BvpData (int depen, int indep)
	Constructs a bit-vector propagation data container.

Public Attributes
int	rc_ {0}
	Return code from ADOL-C drivers.
int	depen_ {-1}
	Number of dependent (output) variables.
int	indep_ {-1}
	Number of independent (input) variables.
int	wordsPerBatch_ {0}
	Number of bit words per batch.
int	bitsPerStrip_ {0}
	Number of bits represented by one batch.
int	numStripmineBatches_
	Number of batches needed to cover all variables.
std::vector< unsigned char >	indepWordHasNonzero_
std::vector< double >	valuepoint_
std::vector< bitword_t * >	seed_
	Seed matrix partitions.
std::vector< bitword_t * >	jacobianBitPattern_
	Jacobian bit pattern partitions.

Detailed Description

template<BitPatternPropagationDirection BPPD>
struct ADOLC::Sparse::detail::BvpData< BPPD >

Internal data structure managing buffers and parameters for bit-vector propagation.

This struct encapsulates the state and storage used during the computation of Jacobian sparsity patterns using bit-vector propagation (BVP).

It manages seed matrices, temporary buffers, and strip-mining batches, depending on the chosen bit pattern propagation direction.

Template Parameters

BPPD	Direction of bit pattern propagation — Forward or Reverse.

Constructor & Destructor Documentation

BvpData() [1/3]

template<BitPatternPropagationDirection BPPD>

ADOLC::Sparse::detail::BvpData< BPPD >::BvpData ( const BvpData< BPPD > &  )

delete

BvpData() [2/3]

template<BitPatternPropagationDirection BPPD>

ADOLC::Sparse::detail::BvpData< BPPD >::BvpData ( BvpData< BPPD > &&  )

delete

~BvpData()

template<BitPatternPropagationDirection BPPD>

ADOLC::Sparse::detail::BvpData< BPPD >::~BvpData ( )

inline

Destructor — frees dynamically allocated memory for bit patterns.

BvpData() [3/3]

template<BitPatternPropagationDirection BPPD>

ADOLC::Sparse::detail::BvpData< BPPD >::BvpData ( int  depen, int  indep  )

inline

Constructs a bit-vector propagation data container.

Initializes memory and parameters for strip-mining based on the propagation direction and number of variables.

Parameters

depen	Number of dependent variables.
indep	Number of independent variables.

Member Function Documentation

operator=() [1/2]

template<BitPatternPropagationDirection BPPD>

BvpData & ADOLC::Sparse::detail::BvpData< BPPD >::operator= ( BvpData< BPPD > &&  )

delete

operator=() [2/2]

template<BitPatternPropagationDirection BPPD>

BvpData & ADOLC::Sparse::detail::BvpData< BPPD >::operator= ( const BvpData< BPPD > &  )

delete

Member Data Documentation

bitsPerStrip_

template<BitPatternPropagationDirection BPPD>

int ADOLC::Sparse::detail::BvpData< BPPD >::bitsPerStrip_ {0}

Number of bits represented by one batch.

depen_

template<BitPatternPropagationDirection BPPD>

int ADOLC::Sparse::detail::BvpData< BPPD >::depen_ {-1}

Number of dependent (output) variables.

indep_

template<BitPatternPropagationDirection BPPD>

int ADOLC::Sparse::detail::BvpData< BPPD >::indep_ {-1}

Number of independent (input) variables.

indepWordHasNonzero_

template<BitPatternPropagationDirection BPPD>

std::vector<unsigned char> ADOLC::Sparse::detail::BvpData< BPPD >::indepWordHasNonzero_

Flags marking independent variables that appear in nonzero entries.

jacobianBitPattern_

template<BitPatternPropagationDirection BPPD>

std::vector<bitword_t *> ADOLC::Sparse::detail::BvpData< BPPD >::jacobianBitPattern_

Jacobian bit pattern partitions.

numStripmineBatches_

template<BitPatternPropagationDirection BPPD>

int ADOLC::Sparse::detail::BvpData< BPPD >::numStripmineBatches_

Initial value:

{
      0}

Number of batches needed to cover all variables.

rc_

template<BitPatternPropagationDirection BPPD>

int ADOLC::Sparse::detail::BvpData< BPPD >::rc_ {0}

Return code from ADOL-C drivers.

seed_

template<BitPatternPropagationDirection BPPD>

std::vector<bitword_t *> ADOLC::Sparse::detail::BvpData< BPPD >::seed_

Seed matrix partitions.

valuepoint_

template<BitPatternPropagationDirection BPPD>

std::vector<double> ADOLC::Sparse::detail::BvpData< BPPD >::valuepoint_

Evaluation point values (used in tight control-flow mode).

wordsPerBatch_

template<BitPatternPropagationDirection BPPD>

int ADOLC::Sparse::detail::BvpData< BPPD >::wordsPerBatch_ {0}

Number of bit words per batch.

---

The documentation for this struct was generated from the following file:

• sparsedrivers.h
