ADOLC::AbsNormalForm Struct Reference

Dense abs-normal form container backed by contiguous storage. More...

#include <absnormalform.h>

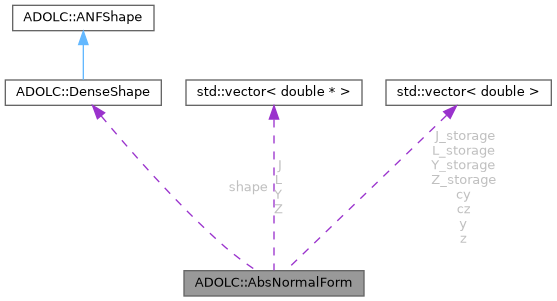

Collaboration diagram for ADOLC::AbsNormalForm:

Public Types
using	Shape = DenseShape

Public Member Functions
	~AbsNormalForm ()=default
	AbsNormalForm ()=default
	AbsNormalForm (Shape dims)
	Construct a dense abs-normal form with the requested principal dimensions.
	AbsNormalForm (AbsNormalForm &&)=default
AbsNormalForm &	operator= (AbsNormalForm &&)=default
	AbsNormalForm (const AbsNormalForm &)=delete
AbsNormalForm &	operator= (const AbsNormalForm &)=delete
bool	empty () const
	Report whether all principal dimensions are zero.
void	clear ()
	Clear all stored data and reset the principal dimensions to {0, 0, 0}.
Shape	dims () const
	Return the principal abs-normal form dimensions.
void	updateCy ()
	Compute cy = y - J|z| from the current data.
void	updateCz ()
	Compute cz = z - L|z| from the current data.
void	resize (Shape dims)
	Resize the abs-normal form to the given principal dimensions.

Static Public Member Functions
static AbsNormalForm	fromTape (short tapeId)
	Allocate an abs-normal form using the dimensions of a recorded tape.

Public Attributes
Shape	shape {}
	Principal dimensions of the represented abs-normal form.
std::vector< double * >	Y
	Row-pointer view of the m x n block Y.
std::vector< double * >	J
	Row-pointer view of the m x s block J.
std::vector< double * >	Z
	Row-pointer view of the s x n block Z.
std::vector< double * >	L
	Row-pointer view of the s x s block L.
std::vector< double >	Y_storage
	Owning contiguous storage for Y.
std::vector< double >	J_storage
	Owning contiguous storage for J.
std::vector< double >	Z_storage
	Owning contiguous storage for Z.
std::vector< double >	L_storage
	Owning contiguous storage for L.
std::vector< double >	cz
	Constant term of the switching equations.
std::vector< double >	cy
	Constant term of the dependent equations.
std::vector< double >	y
	Dependent values at the evaluation point.
std::vector< double >	z
	Switching-variable values at the evaluation point.

Detailed Description

Dense abs-normal form container backed by contiguous storage.

The flat *_storage vectors own the matrix entries, while Y, J, Z, and L provide row-pointer views compatible with the existing driver interfaces.

Member Typedef Documentation

Shape

using ADOLC::AbsNormalForm::Shape = DenseShape

Constructor & Destructor Documentation

~AbsNormalForm()

ADOLC::AbsNormalForm::~AbsNormalForm ( )

default

AbsNormalForm() [1/4]

ADOLC::AbsNormalForm::AbsNormalForm ( )

default

AbsNormalForm() [2/4]

ADOLC::AbsNormalForm::AbsNormalForm ( Shape  dims )

inlineexplicit

Construct a dense abs-normal form with the requested principal dimensions.

Storage is allocated immediately using the same semantics as resize().

AbsNormalForm() [3/4]

ADOLC::AbsNormalForm::AbsNormalForm ( AbsNormalForm &&  )

default

AbsNormalForm() [4/4]

ADOLC::AbsNormalForm::AbsNormalForm ( const AbsNormalForm &  )

delete

Member Function Documentation

clear()

void ADOLC::AbsNormalForm::clear

(

)

Clear all stored data and reset the principal dimensions to {0, 0, 0}.

All owning buffers and row-pointer views become empty.

dims()

Shape ADOLC::AbsNormalForm::dims ( ) const

inline

Return the principal abs-normal form dimensions.

empty()

bool ADOLC::AbsNormalForm::empty ( ) const

inline

Report whether all principal dimensions are zero.

fromTape()

static AbsNormalForm ADOLC::AbsNormalForm::fromTape ( short  tapeId )

inlinestatic

Allocate an abs-normal form using the dimensions of a recorded tape.

Parameters

tapeId

Tape identifier whose dependent, independent, and switching counts determine the returned principal dimensions.

operator=() [1/2]

AbsNormalForm & ADOLC::AbsNormalForm::operator= ( AbsNormalForm &&  )

default

operator=() [2/2]

AbsNormalForm & ADOLC::AbsNormalForm::operator= ( const AbsNormalForm &  )

delete

resize()

void ADOLC::AbsNormalForm::resize

(

Shape

dims

)

Resize the abs-normal form to the given principal dimensions.

All owning buffers are resized with vector semantics, and the row-pointer views are rebuilt to point into the resized contiguous storage.

updateCy()

void ADOLC::AbsNormalForm::updateCy ( )

inline

Compute cy = y - J|z| from the current data.

updateCz()

void ADOLC::AbsNormalForm::updateCz ( )

inline

Compute cz = z - L|z| from the current data.

Member Data Documentation

cy

std::vector<double> ADOLC::AbsNormalForm::cy

Constant term of the dependent equations.

cz

std::vector<double> ADOLC::AbsNormalForm::cz

Constant term of the switching equations.

J

std::vector<double *> ADOLC::AbsNormalForm::J

Row-pointer view of the m x s block J.

J_storage

std::vector<double> ADOLC::AbsNormalForm::J_storage

Owning contiguous storage for J.

L

std::vector<double *> ADOLC::AbsNormalForm::L

Row-pointer view of the s x s block L.

L_storage

std::vector<double> ADOLC::AbsNormalForm::L_storage

Owning contiguous storage for L.

shape

Shape ADOLC::AbsNormalForm::shape {}

Principal dimensions of the represented abs-normal form.

Y

std::vector<double *> ADOLC::AbsNormalForm::Y

Row-pointer view of the m x n block Y.

y

std::vector<double> ADOLC::AbsNormalForm::y

Dependent values at the evaluation point.

Y_storage

std::vector<double> ADOLC::AbsNormalForm::Y_storage

Owning contiguous storage for Y.

Z

std::vector<double *> ADOLC::AbsNormalForm::Z

Row-pointer view of the s x n block Z.

z

std::vector<double> ADOLC::AbsNormalForm::z

Switching-variable values at the evaluation point.

Z_storage

std::vector<double> ADOLC::AbsNormalForm::Z_storage

Owning contiguous storage for Z.

---

The documentation for this struct was generated from the following file:

• absnormalform.h
